Product Details:
|
| Product Name: | 5000W Pure Sine Power Inverter | Nominal Power: | 5000W |
|---|---|---|---|
| Output Type: | Single, Dual | Display: | LCD/LED Optional |
| Inverter Type: | Low Frequency Power Inverter | Net Weight: | 38 KG |
| Communication: | RS-232/USB/SNMP(custom-made) | ||
| High Light: | 120VAC 5000 pure sine wave inverter,5000 pure sine wave inverter 220VAC,60Hz 5000w inverter pure sine wave |
||

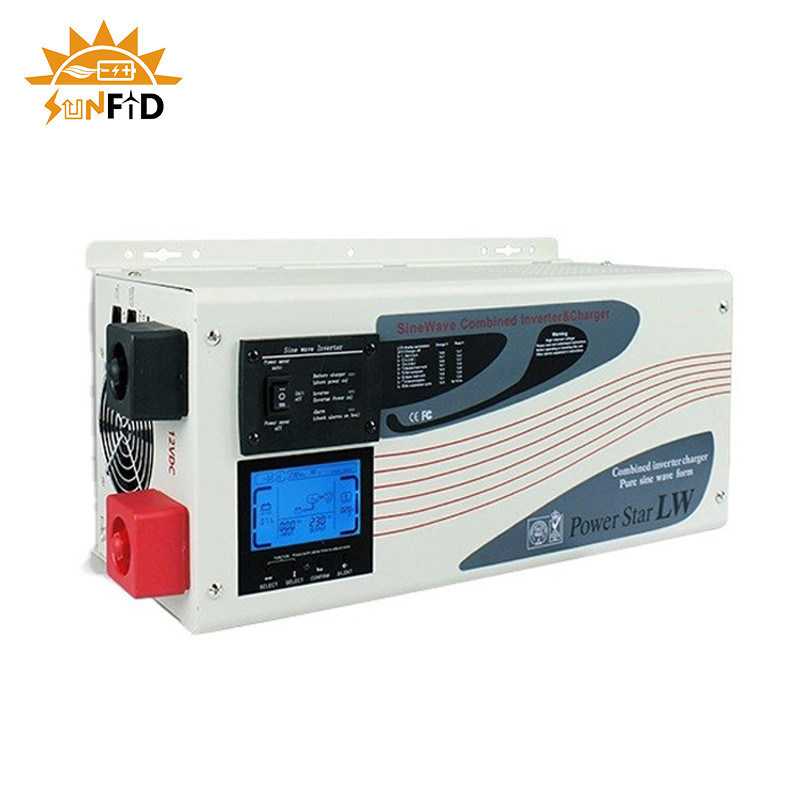

Pure Sine Wave Power Inverter 5KW Low Frequency Power Star Inverter With LCD Display
Main Features:
1. Can work with inductive load such as air conditioner, motor and so on.
2. Pure sine wave, available for sensitive load.
3. 5-step progressive charging, 7 battery type selector.
4. Fast and powerful charger with 35A and 70A.
5. Automatically transfer between battery and line modes.
6. Microprocessor control guarantees high reliability.
Product Application
Not only used for common appliances such as the TV,computer,lights,fan ..
but also suitable for inductive loading such as air conditions,fridge,water pump and motor
Specification:
| Model | OKINW5000 | |
| AC Input | Nominal Power | 5000W |
|
Norminal Voltage |
120VAC/230VAC OR 220/230/240VAC |
|
| Acceptable Voltage |
95-126VAC OR 194-253VAC±4% |
|
| Line low Transfer |
85V±4% OR 184±4% (154 wide mode±4%) |
|
| Frequency | 50Hz or 60Hz (auto sensing) | |
| Out Input | Phase &waveform | Pure Sine Wave(bypass mode sync to input) |
| Voltage |
110/120/130VAC OR 220/230/240VAC±10%rms (bypass mode sync to input) |
|
| Voltage Regulation | ±10%rms(bypass mode sync to input) | |
| Frequency | 50Hz±0.3Hz(bypass mode sync to input) | |
| Peak Power | 3 times of rating power | |
| Short Circuit Protection | Yes, shutdown after 10ms | |
| DC Input | Battery Voltage | 24V/48V |
| Minimum Start Voltage | 10V for 12V, 20V for 24V, 40V for 48V | |
| Max Charging Current |
20A/35A/50A/75A/90A(According to the inverter model) |
|
| Transfer Efficiency | Line Mode | >96% |
| Battery Mode | >85% | |
| Power saver | Available when the load is less than 25 Watts | |
|
System Parameter |
Audible Alarm | Sounding when the heatsink’s tem is over 105℃ and shutdown after 30 seconds. |
| Protections | low battery/ over charging /over temp/over load | |
| Communications | RS-232/USB(custom-made) | |
| Enviromental | Operating Environment | 0-40℃,0-90%℃ RH(non-condensing) |
| Net Weight (KG) | 39.5 | |
| Dimension(LxWxH) | 605×218×179mm | |
FAQ:
Q1.How is your product quality?
A: QC regularly check the quality . We have been working with large solar inverters company. Our products were damaged less than
3% over the past 3 years. Regarded as a high quality inverter supplier.
Q2: What's the different between inverter and solar inverter?
A: Inverter is only accept AC input, but solar inverter not only accept AC input
but also can connect with solar panel to accept PV input, it more save power.
Q3.When the product have problem, how to solve it?
A:We have a professional after-sales team, in case of any problems, first contact us to help you solve,we have a 24 months warranty.We will track product usage until you are satisfied.
Q4. What kind of material of transformer?
A. 100% copper which has a long sevice life and higher efficiency.
