Product Details:
|
| Battery Type: | 12V 7Ah LiFePo4 Battery Pack | Nominal Voltage: | 12.8V |
|---|---|---|---|
| Nominal Capacity: | 7Ah | Maximum Continuous Discharge Current: | 10A - 1C |
| Pulse Discharge Current (less Than 1 Second): | 20A - 2C | Dimension: | Can Be Customized |
| High Light: | koeok Lifepo4 Rechargeable Lithium Battery Pack,koeok 12V Rechargeable Lithium Battery Pack,koeok 12V Rechargeable Lithium Battery Packs |
||

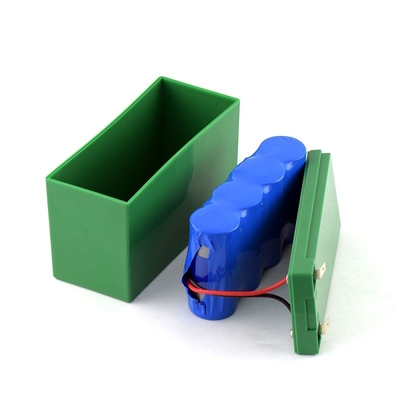

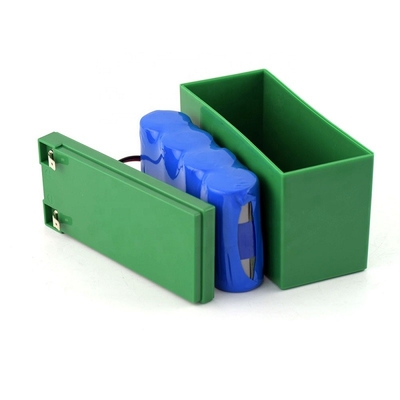

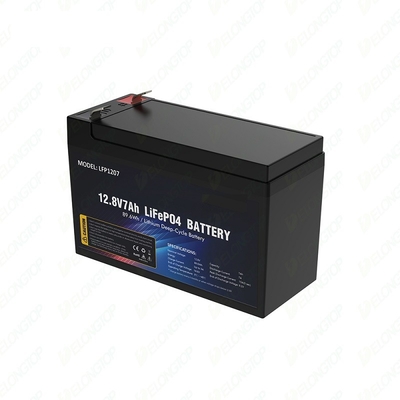

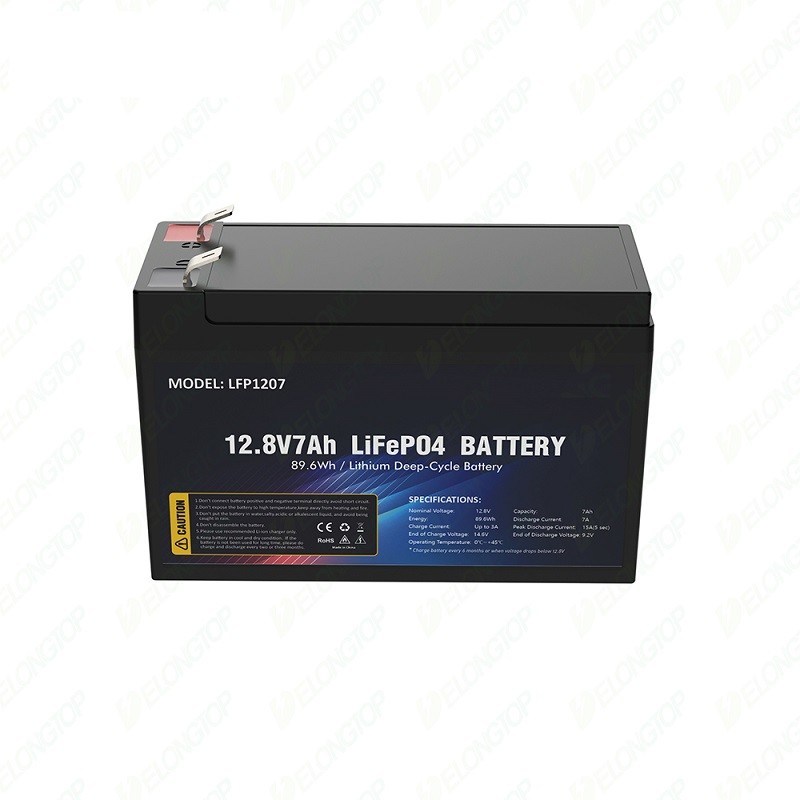

Rechargeable Lithium Battery Pack Rechargeable Battery Lifepo4 12V 7Ah Battery Pack with 32650 Lifepo4 Battery Cell
Specifications:
| Name | 12V 7Ah LiFePo4 battery pack |
| Nominal voltage | 12.8V |
| Nominal capacity | 7Ah |
| Cell type | 3.2V 32700/32650 6500mah battery cell or 26650 3600mah battery cell |
| Configuration | Customized 4S1P by 32700 , 4S2P by 26650 battery cell. |
| Chemistry | LiFePo4 |
| Working current | 2A - 0.2C |
| Maximum continuous discharge current | 10A - 1C |
| Pulse discharge current (less than 1 second) | 20A - 2C |
| Discharge end-off voltage | 8V/10V |
| Charging end-off voltage | 14.6V/16.8V |
| Standard charging current | 2A - 0.2C |
| Maximum charging current | 10A |
| Iner resistence | <70mΩ |
| Operating temperature | Charge: 0 to 45 °C Discharge:-20 to 60°C |

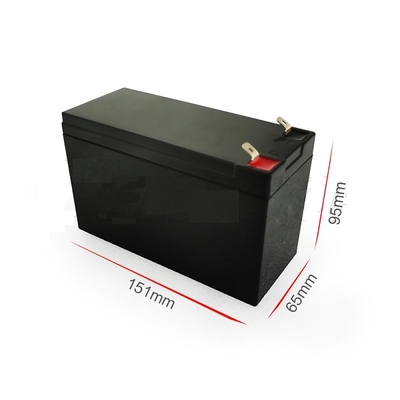

| Dimension | Can be customized |
| Weight | 720g |
| Storage temperature range | Less than 1 year:-20~25°C |
| Less than 3 months:-20~40°C | |
| less than 7 days: -20~60°C |
FQA:
Q1: Are you trading company or manufacturer?
A: We are original factory from shenzhen , China.
Q2. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed
Q3. Can your battery be wired in series or parallel?
A: YES,YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.
Q4. Can the bms be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened to replace the BMS & cells on the guidance of engineer.
