Product Details:
|
| Product Name: | Solar Power Pumping Inverter With MPPT | Output Power:: | 3000W |
|---|---|---|---|
| Max.Output Current: | 8A | Support 1: | AC & DC Input |
| Support 2: | GPRS-RS485 (optional) | Display: | LCD+LED Display |
| High Light: | 3KW Solar Pumping Inverter,MPPT Solar Pumping Inverter,FCC Pure Sine Wave Power Inverter |
||

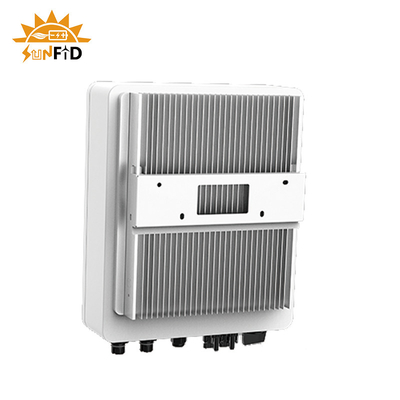

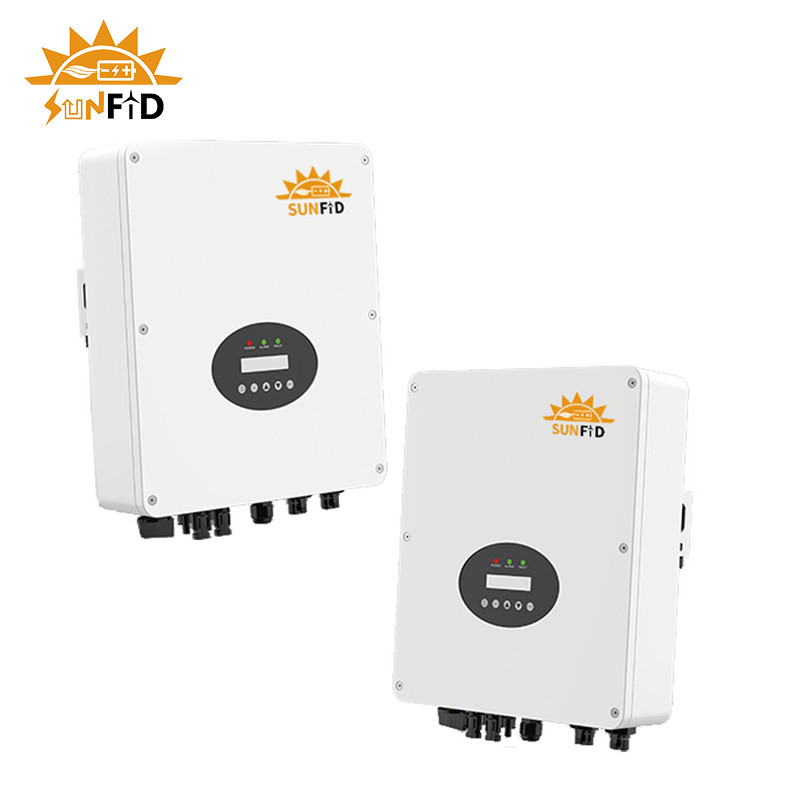

3KW Solar Pumping Inverter With MPPT AC Input For Solar Power Pumping System
3KW AC Input Solar Pump Inverter Characters
1. Fully automatic and intelligent operation, safe and stable, to prevent dry pumping and overflow.
2. Interface visualization, LCD screen, and LED status indicator display.
3. The monitoring mode supports GPRSRS485 (optional).
4. Support mains/oil machine input, with various functions.
Solar Energy System Pumping InverterParameters:
| Model | SFD-PI3KG |
| Input(DC side) | |
| Max DC Voltage(Vdc) | 900Vdc |
| Start-up Voltage (Vdc) | 250Vdc |
| Max Input Current (A) | 12.5A |
| MPPT Operating Range(Vdc) | 450Vdc-750Vdc |
| Number of Inputs | 2 |
| Input (AC side) | |
| AC Input Voltage (Vac) | 380Vac± 15% |
| AC Input Frequency (HZ) | 50/60HZ± 5Hz |
| Output(AC side) | |
| Rated Output Power(W) | 3000W |
| Max Output Current (A) | 8A |
| AC Output Voltage(Vac) | 380Vac3PH |
| Output frequency (Hz) | 0～50/60Hz |
| Other Parameters | |
| Noise typical[dB(A)] | <45dB(A) |
| Cooling Concept | Natural cooling |
| Operating Temperature(℃) | -25℃~+60℃ |
| Protect Level | IP65 |
| Communication | GPRSIRS485 |
| Dimension(W*H*D mm) | 410*346*160mm |
| Weight (Kg)REF | 12Kg |
