Product Details:
|
Product Name: | 2KW Solar Power Inverter | Product Type: | DC/AC Inverter |
---|---|---|---|
Rated Power: | 2000W | Color: | Customized |
Output Type: | Single | Output Voltage: | 110-120VAC/220-230VAC |
Input Voltage: | 12V/24V/48V | ||
High Light: | 12V Volt 2000w pure sine wave power inverter,2000w pure sine wave power inverter DC To AC,110V hybrid solar inverter charger |

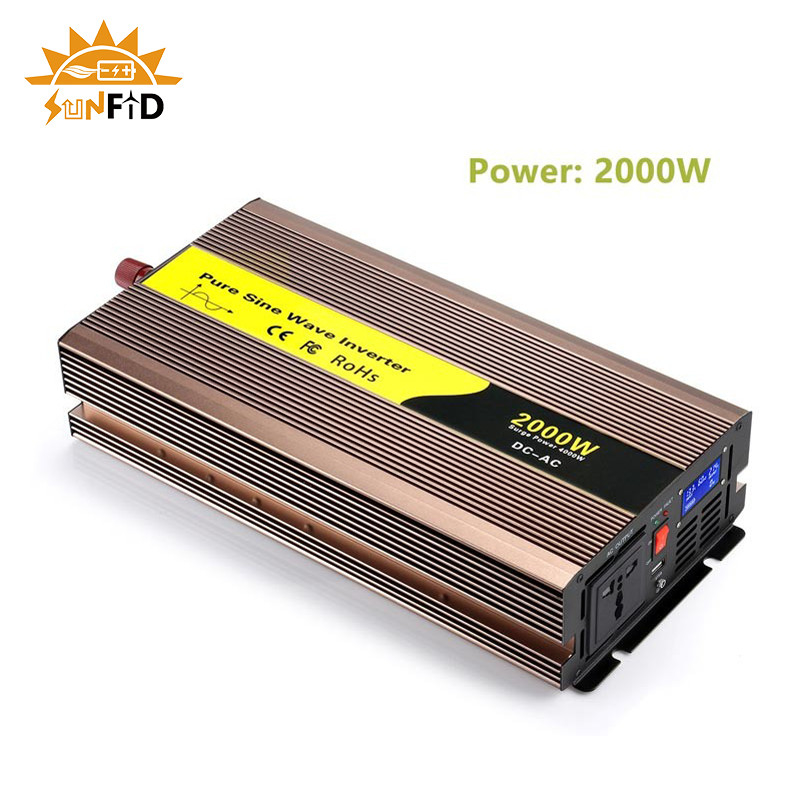

Pure Sine Wave Power Inverter 2000Watt 12VVolt DC To AC 110V/220V Home Hybrid Solar Inverter Charger
Product Description:
Product Application
Widely applications for Indoor and outdoor uses- Ideal for RVs, Boats, and power failure emergencies. AC outlets for multi-purpose emergency use on vacations, business trips, and camping. etc.
Specification:
Model | OKIN2000 | |||
Rated power | 2000W | |||
Peak power | 4000W | |||
Input voltage | DC12V | DC24V | DC48V | |
Output voltage | 100VAC or 120VAC or 220VAC or 230VAC or 240VAC±5% | |||
Unload current less than | 1.1A | 0.7A | 0.5A | |
Waveform distortion | THD<3%(Linear load) | |||
USB port | 5V 1A | |||
Max.efficiency | 90% | |||
Input voltage range | 10-15.5V | 20-31V | 40-61V | |
Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V | |
Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V | |
Over voltage recover |
14.8V±0.5V |
29.5V±0.5V |
59V±1V |
|
Protect function | Over voltage | LED Red light on, shut down | ||
Over load | LED Red light on, shut down | |||
Short circuit | LED Red light on | |||
Input reverse polarity | Fuse burn-out | |||
(LxWxH) Dimension(mm) |
350x180x78mm |
FAQ:
1. Q:What is a resistive load appliances?
A:Generally speaking, appliances like mobile phones, computers, LCD TVs, incandescents, electric fans, video broadcast, small printers, electric mahjong machines, rice cookers etc. All belong to resistive loads. Our modified sine wave inverters can drive them successfully.
2. Q:What is the inductive load appliances?
A:It refers to the application of electromagnetic induction's principle, produced by high-power electrical products, such as motor type, compressors, relays, fluorescent lamps, electric stove, refrigerator, air conditioner, energy saving lamps, pumps, etc. These products' power are far more than the rated power (about 3-7 times) when start. So only pure sine wave inverter is available to them.
