Product Details:
|
| Product Name: | 5000W Power Inverter | Product Type: | DC/AC Inverter |
|---|---|---|---|
| Power: | 5000W | Output Frequency: | 50Hz/60Hz |
| Output Voltage: | 110-120VAC/220-230VAC | Input Voltage: | 12V/24V/48V |
| Output Type: | Dual | ||
| High Light: | DC To AC 5000 watt pure sine wave power inverter,5000 watt pure sine wave power inverter 12V,24V inverter dc to ac pure sine wave |
||

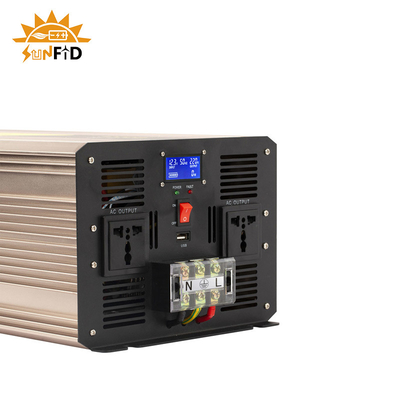

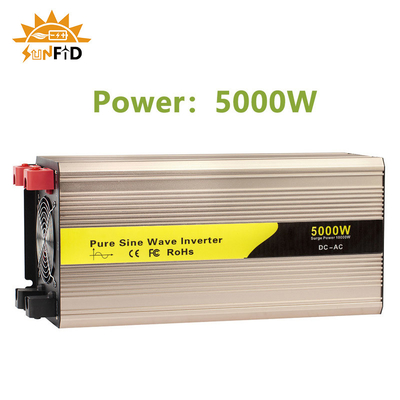

Pure Sine Wave Power Inverter 5000Watt DC To AC LCD Digital Display Remote Power Converter
Product Description:
It works as a LCD displayer, which displays the working status of the inverter, such as voltage, power and current, a protector for powered appliances. ON/OFF Attention if you want to turn off the converter with the remote controller, you need to turn on via remote control NOT the button on the inverter(Keep the button OFF while using remote control)
Product Application
Widely for RVs, Boats, and power failure emergencies, Household Electric Appliance, Charging tablet,game player, kindle, digital camera,TV,cell phones, lights, power tools. AC outlets for multi-purpose emergency use on vacations, business trips, and camping. etc.
Specification:
| Model | OKIN5000 | |||
| Rated power | 5000W | |||
| Peak power | 10000W | |||
| Input voltage | DC12V | DC24V | DC48V | |
| Output voltage | 100VAC or 120VAC or 220VAC or 230VAC or 240VAC±5% | |||
| Unload current less than | 1.5A | 1A | 0.8A | |
| USB port | 5V 1A | |||
| Max.efficiency | 90% | |||
| Input voltage range | 10-15.5V | 20-31V | 40-61V | |
| Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V | |
| Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V | |
|
Over voltage recover |
14.8V±0.5V |
29.5V±0.5V |
59V±1V |
|

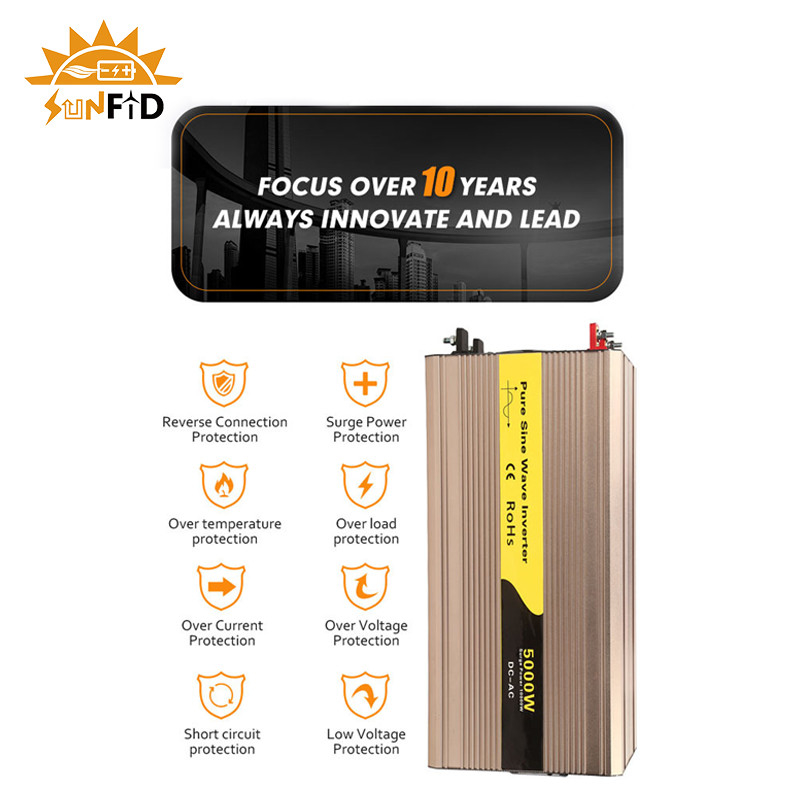

| Protect function | Over voltage | LED Red light on, shut down | ||
| Over load | LED Red light on, shut down | |||
|
Over temperature |
Alarm at first, tempurature continuously rise. LED Red light on & shut down | |||
| Input reverse polarity | Fuse burn-out | |||
|
Working temperature |
-10°C-+50°C |
|||
|
Storage temperature |
-30°C-+ 70°C |
|||
| (LxWxH) Dimension(mm) |
550*180*128mm |
|||
FAQ:
1. Q: Do you have your own factory?
A:Yes,we are professional manufacturer. Our factory is located in Shenzhen,China
2. Q: What is a resistive load appliances?
A:Generally speaking, appliances like mobile phones, computers, LCD TVs, incandescents, electric fans, video broadcast, small printers, electric mahjong machines, rice cookers etc. All belong to resistive loads. Our modified sine wave inverters can drive them successfully.
3. Q:What is the inductive load appliances?
A:It refers to the application of electromagnetic induction's principle, produced by high-power electrical products, such as motor type, compressors, relays, fluorescent lamps, electric stove, refrigerator, air conditioner, energy saving lamps, pumps, etc. These products' power are far more than the rated power (about 3-7 times) when start. So only pure sine wave inverter is available to them.
